- 13 -
REPLACING THE HEATER
The heat necessary for the operation of an absorption cooling
unit is supplied by an electric heater mounted in a pocket of the
boiler system. The refrigerator is equipped with one electric
heater for 120 V AC.
To replace the heater, follow these steps:
Disconnect the wall plug and for RM2510, the 12 V
DC leads to the reigniter.
Remove the protection cover.
Remove the plastic cover of the main control struc-
ture by loosening the two screws.
Disconnect the heater leads from the terminal block.
Pull off the metal hose.
With a pair of pliers, unfold the lug holding the lid of
the boiler casing and open the lid.
Remove some insulation wool so that the heater is
accessible.
Turn and lift the heater out of its pocket.
Fit the new heater into the pocket. Pull on the metal
hose around the leads.
Connect the leads and put on the plastic cover.
Put back the insulation and close the lid of the boiler.
CHECKING THE CONNECTIONS
Make sure the LP gas supply is turned on.
Check all connections in the LP gas system for gas
leaks.
Apply a non-corrosive bubble solution to all LP gas
connections. The appearance of bubbles indicates a
leak and should be repaired immediately!
CHECKING THE LP GAS PRESSURE
The LP gas pressure should be checked and readjusted if
necessary. The correct operating pressure is 11 inches of water
column. The correct place to measure the LP gas pressure is at
the test port just ahead of the burner jet.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
1.
2.
3.
INSPECTING THE FLUE BAFFLE
It should be reasonably clean and free of soot. Heavy soot for-
mation indicates improper functioning of the burner. The ue
and burner both require cleaning in the following manner:
Unplug the refrigerator power cord from the 120 V
AC outlet.
RM2510: Disconnect or shut off the 12 V DC power
to the refrigerator.
Shut off the gas valve.
Remove protection cover from the burner housing.
Disconnect the wire from the high voltage electrode.
Remove the burner mounting screw and then,
remove the burner assembly.
Remove the ue cap from top of ue tube and lift
out the wire and spiral bafe.
Clean the ue from the top using a ue brush. Blow-
ing compressed air into the ue will not properly
clean soot and scale out of the ue tube.
Replace spiral bafe and ue cap.
Clean burner tube with a brush. Blow out burner
with compressed air.
Before removing burner jet:
Clean burner area of soot and scale that fell out of
ue tube.
Remove the burner jet. Soak the jet in wood
alcohol and blow it out with compressed air.
Reinstall and tighten burner jet.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
-
-
-
MAINTENANCE & SERVICE
Service must be done on a regular schedule to keep the refrigerator operating properly.
Refer all servicing to qualied service personnel.

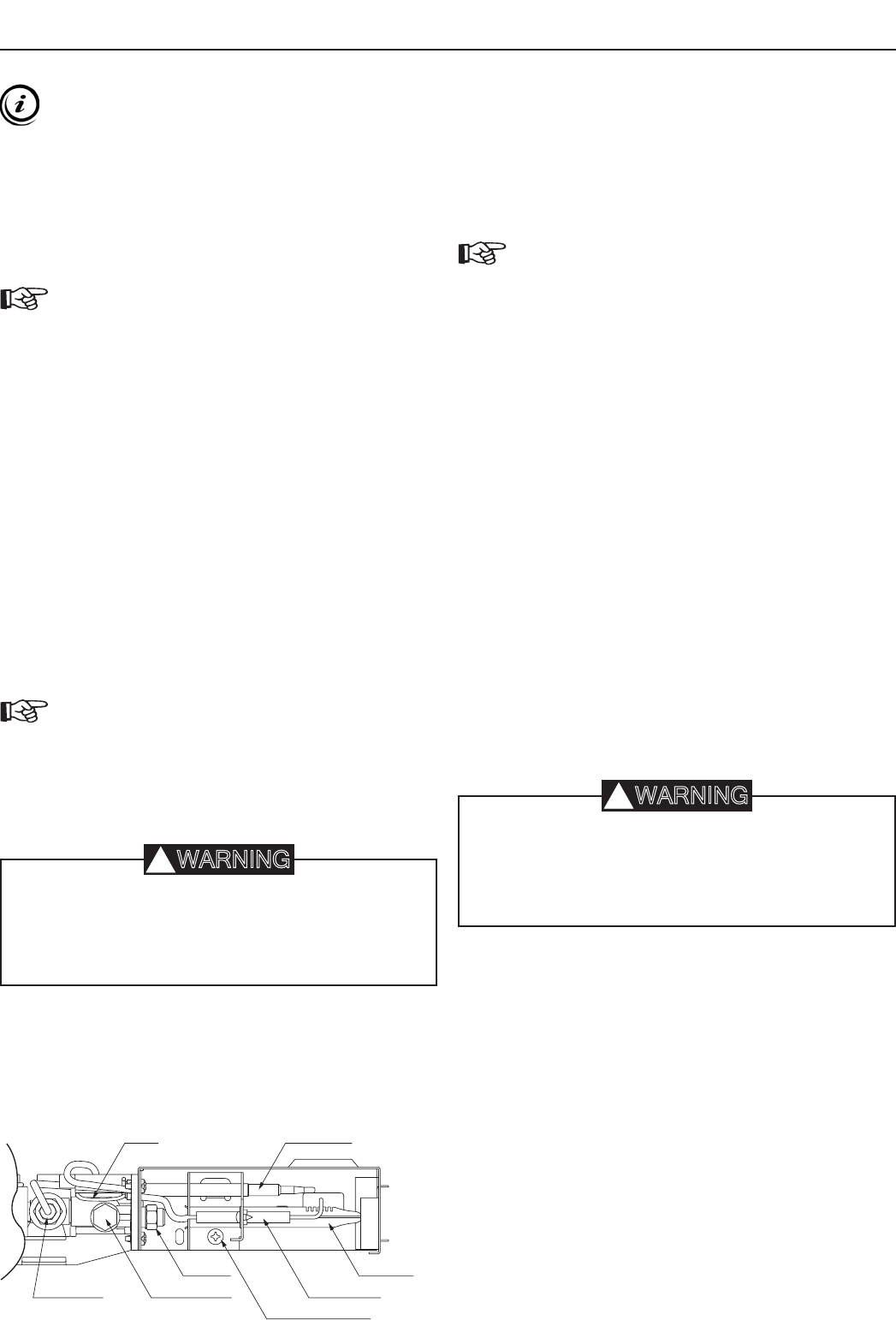

Pressure test port
Burner jet
Burner tube
Spark electrode
Burner mounting screw
Thermocouple
Spring
Thermocouple
connection
EXPLOSION HAZARD. Never use an open
ame to check for gas leaks. Failure to heed this
warning could cause an explosion resulting in
death or severe personal injury.
WARNING
!
FIRE HAZARD. Do not use a wire or pin when
cleaning the burner jet as damage can occur to
the precision opening. Failure to heed this warn-
ing could cause re resulting in personal injury.
WARNING
!
